New release: Ultra Mini 12G-SDI fiber extender
2024/4/22 16:35:56

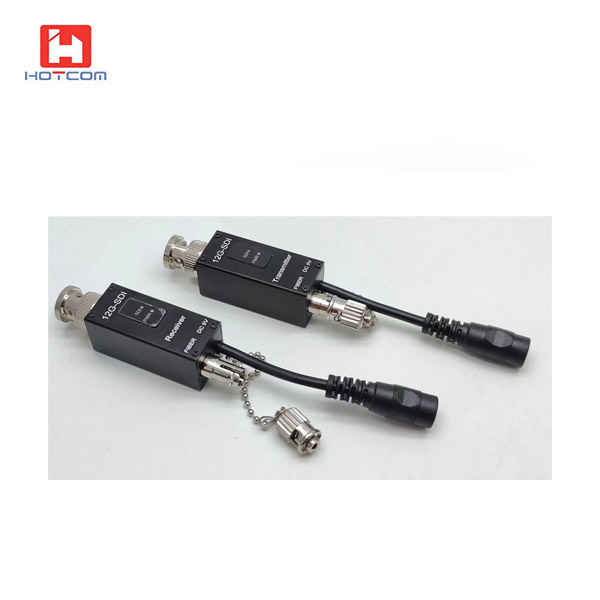

Ultra Mini 12G-SDI fiber extender, transmitter/receiver kits
HT401-12GSDI-ST-MN offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable. HT401-12GSDI-ST-MN fiber converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
Features
Extend 12G/3G/HD/SD SDI up to 6.2 miles
Applicable to both single and multi-mode fibers
SDI BNC input connector and ST terminated fiber optical connector
Latch-locking power connector
Resolutions up to 4K@60Hz
Super Compact, Lightweight Design
SDI, and Power LED Indicators
Unique anti-detachment design For optical port dust cap
Main specifications:
Optical interface: Singlemode ST
Transmission Distance: 550m~10km
Video Bandwidth: 12Gbps
Resolutions: Supports SMPTE 259/292/424/2081/2082
Input Impedance 75Ω
Signal Level: 800mVp-p +/- 50mV
Wavelength: 1310nm
Dimensions: 80*17*17mm
Weight: 200g
Ordering information:
HT401-12GSDI-ST-MN: Ultra Mini 12G-SDI fiber extender, transmitter/receiver kits, ST connector
