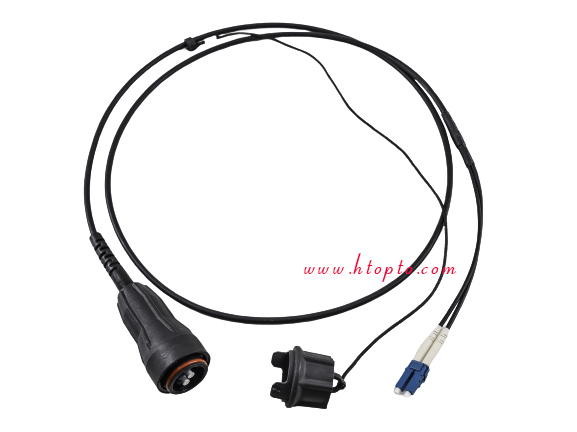

FULLAXS Fiber to the Antenna Rugged Interconnect
FullAXS Fiber-to-the-Antenna Connector next generation WIMAX technology features a Long Term Evolution fiber to antenna connection design. This allows for the usage of strong cable assemblies on the outdoors.
FullAXS Direct connections allow for the cable assembles through the bulkhead construction to be plugged directly into the optical transceivers. This accommodates a large Z tolerance, which allows the usage of the widest range of transceivers available on the market. End users now have the ability to choose from multiple transceivers.
Highlights:
1. Plug directly into the optical transceivers though a bulkhead construction
2. Excellent for Fiber To The Antenna (FTTA)

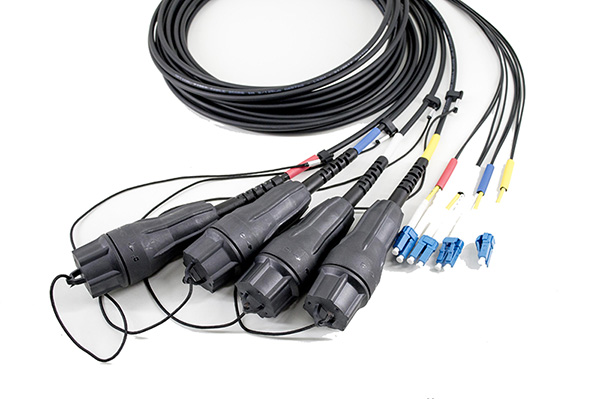

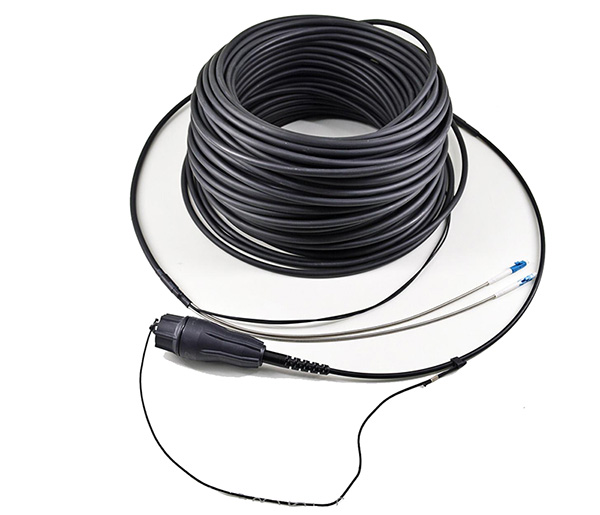

Cable accessories and bulkheads

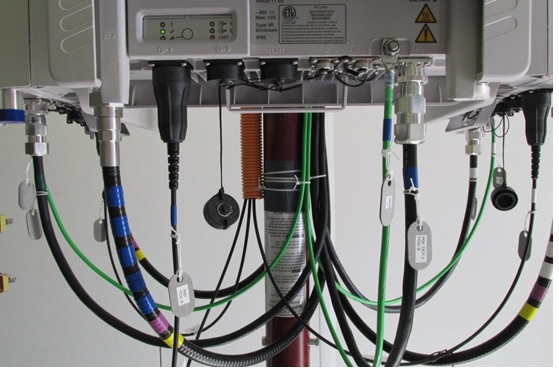

excellent for outdoor installations
for Fiber To The Antenna (FTTA)
FullAXS FEATURES
·Compatible with TE FullAXS series connectors
·Open bulkhead for easy access to SFP
·Positive mechanical feedback to operator when fully mated
·One-hand mating
·Duplex LC interface
·Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
·Robust bayonet locking for easy, fast, and secure mating
·Multimode and single mode
·Water proof, dust proof and corrosion resistant
·Expansion to RJ45 and Power possible
·Plug has tolerance free design, fully free floating on Z-axis
·No Cable buckling during or after installatoin
·Cost effective metal die cast bulkhead
·Field installable version available
APPLICATIONS
·WiMAX and LTE Base Stations
·Remote Radio Heads (RRH)
·Industrial outdoor applications
·Robotics
·Aerospace & Defense
MECHANICAL
·Designed to meet 150 N cable retention
·Designed to meet IP67
·LC interface
·Single-and Multimode
·Adapter footprint : 36mm x 36mm
·Bayonet style locking
·Duplex LC interconnect MM or SM
·No tools required
·Operating temperature : -40°c to 70°c
·Mating durability min : 100 cycles
SPECIFICATIONS
·Temperature : -40°c to 70°c
·150 N Pull Force : per IEC61300-2-4
·Protection Class : IP65 (IP 67 on request)
·100 Mating Cycles
·Vibration : per IEC 61300-2-1
· Salt mist : per IEC 61300-2-26
·Impact : per IEC 61300-2-12
·Temperature / Humidity : per IEC 61300-2-22
