Brief introduction:
HT2005-DR-6SCD DIN-rail fiber optic terminal box can be used for wiring and terminal connection of various fiber optic systems, especially for small network terminal wiring connecting fiber optic cables, plugs or pigtails.
The HT2005-DR-6SCD DIN-rail fiber optic terminal box produced by H&T Optoelectronics can be produced in 2 core, 4 core, 6 core, 8 core, 12 core, 24 core and can be configured with different panels, such as ST single core panel, LC single fiber panel, LC dual core panel, SC single core panel, SC dual core panel, FC single core panel, E2000 single fiber panel and so on.
HT2005-DR-6SCD Din-rail type fiber optic terminal box supports OEM customization service!
Spotlights:
Light weight, small size, easy installation.
Suitable for DIN rail application.
Provide splice protection of fiber cable and pigtails.
Made of cold-rolled steel. Electrostatic Powder spraying,Black or Hoar color optional.
Adapter port is optional for SC, FC , ST or LC duplex adapters.
Din-rail 12core Fiber optical Terminal Box Specifications：
P/N：HT2005-DR-XX
Port number： 6-port
Fiber connector: LC, SC, FC, ST etc
Fiber type: SM：G652D,G657A1 etc
MM：OM1/OM2/OM3/OM4/OM5
Optical Characteristics:
Connector attenuation (dB):Flange loss ≤ 0.2dB, pigtail loss ≤ 0.3dB
Return Loss(dB): PC≥45dB，UPC≥50dB，APC≥60dB
Fiber optic cable, fiber optic storage radius: ≥45mm
Mechanical:
Material: Cold Rolled Sheet
Flange panel : Cold-rolled sheet
Size: 128.8*130*36.4mm
Inner box: 16.5*15.5*4.5cm
Outer carton box: 48.5*47*35cm
Gross weight per unit: 0.65KGS
Gross weight per box: 23KGS/34sets
Installation method: Din-rail
Environmental:
Operation temperature: -40℃～+85℃
Relative humidity: ≤95%（+40℃時(shí)）
Atmospheric pressure: 70 kPa～106 kPa
Insulation resistance: The insulation resistance between the grounding device and the metal components of the box is not less than 2×104MΩ/500V (DC))
Withstand voltage(V): The voltage resistance between the grounding device and the metal components of the box is not less than 3000V (DC) / 1min
Lifespan: 20-year
Ordering information:
P/N Description
HT2005-DR-6SCD SM 12-core Din-Rail Fiber Optical Terminal Box, SC SM
HT2005-DR-6scd MM 12-core Din-Rail Fiber Optical Terminal Box, sC MM
Note: for MM, pls specify the fiber type when place order, for example, OM1 or OM2 or OM3, OM4
Application：
local area network (LAN)
Cable TV Network
Fiber-to-the-home system
Wide Area Network
Test Instruments

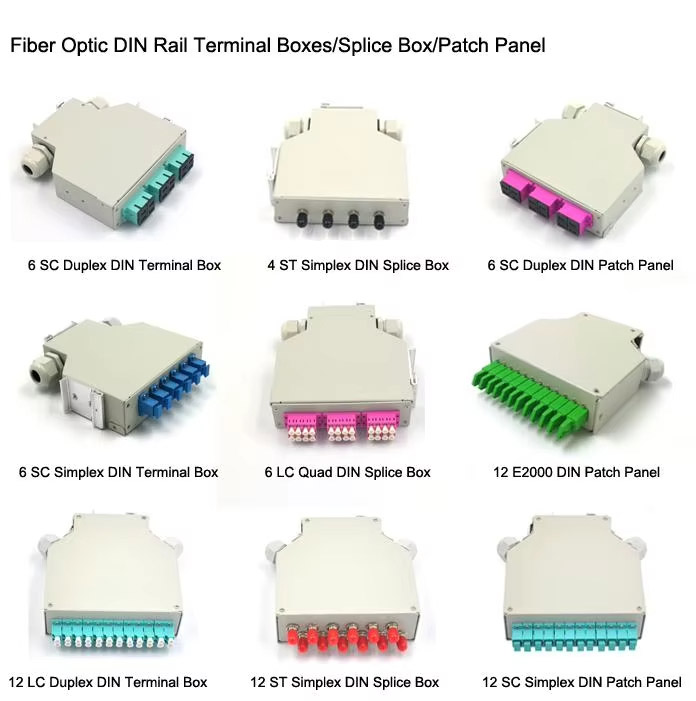

Optional models:
