Brief introduction:
HT2005-DR-AL-XX DIN-Rail Fiber Optic Terminal Box is designed for indoor environment, suitable for connection and distribution between indoor and outdoor fiber optic cables can be DIN-Rail mounted and wall mounted, with small volume, light weight and other characteristics, especially suitable for use when the requirements are small; for fiber optic cables with a diameter of less than 20mm.
The HT2005-DR-AL-XX DIN rail mounted fiber optic terminal box is used for fiber optic connection and distribution. It is made of aluminum profile with internal plastic connector tray. It is lightweight, suitable for 12-core fiber optic boxes, and can be mounted on DIN rails in electrical and communication cabinets and other environments. It is suitable for connecting SC/ST/FC duplex or LC quad adapters. Mounted on DIN rails and indoor applications, the HT2005-DR-AL-XX is easy to install and has a compact design that allows users to connect up to 12 (24 LC) fibers.
The HT2005-DR-AL-XX rail-mount design is especially suitable for installation in space such as machine room cabinets and waterproof enclosures, and is ideal for splicing and organizing fiber optics in industrial cabinets.
Din-rail 12core Fiber optical Terminal Box Specifications：
|
P/N
|
HT2005-DR-AL-XX
|
|
Port number
|
12-port
|
|
Fiber connector
|
LC, SC, FC, ST etc
|
|
Fiber type
|
SM：G652D,G657A1 etc
MM：OM1/OM2/OM3/OM4/OM5
|
|
Optical Characteristics
|
|
|
Connector attenuation (dB)
|
Flange loss ≤ 0.2dB, pigtail loss ≤ 0.3dB
|
|
Return Loss(dB)
|
PC≥45dB，UPC≥50dB，APC≥60dB
|
|
Fiber optic cable, fiber optic storage radius
|
≥45mm
|
|
Mechanical
|
|
|
Material
|
Housing: aluminum alloy
Splice tray: ABS, swing/flip-top design
|
|
Size
|
123*136.6*35mm
|
|
Inner box
|
18*17*4cm
|
|
Outer carton box
|
42*38*37cm
|
|
Gross weight per unit
|
0.65KGS
|
|
Gross weight per box
|
26KGS/40sets
|
|
Installation method
|
Din-rail
|
|
Environmental
|
|
|
Operation temperature
|
-40℃～+85℃
|
|
Relative humidity
|
≤95%（+40℃時(shí)）
|
|
Atmospheric pressure
|
70 kPa～106 kPa
|
|
Insulation resistance
|
The insulation resistance between the grounding device and the metal components of the box is not less than 2×104MΩ/500V (DC))
|
|
Withstand voltage(V)
|
The voltage resistance between the grounding device and the metal components of the box is not less than 3000V (DC) / 1min
|
|
Lifespan
|
20-year
|
Ordering information
|
P/N
|
Description
|
|
HT2005-DR-AL-XX SM
|
12-core Din-Rail Fiber Optical Terminal Box, XX=2/4/6/8/12/24 core, SM
|
|
HT2005-DR-AL-XX MM
|
12-core Din-Rail Fiber Optical Terminal Box, XX=2/4/6/8/12/24 core, MM
|
Note: for MM, pls specify the fiber type when place order, for example, OM1 or OM2 or OM3, OM4

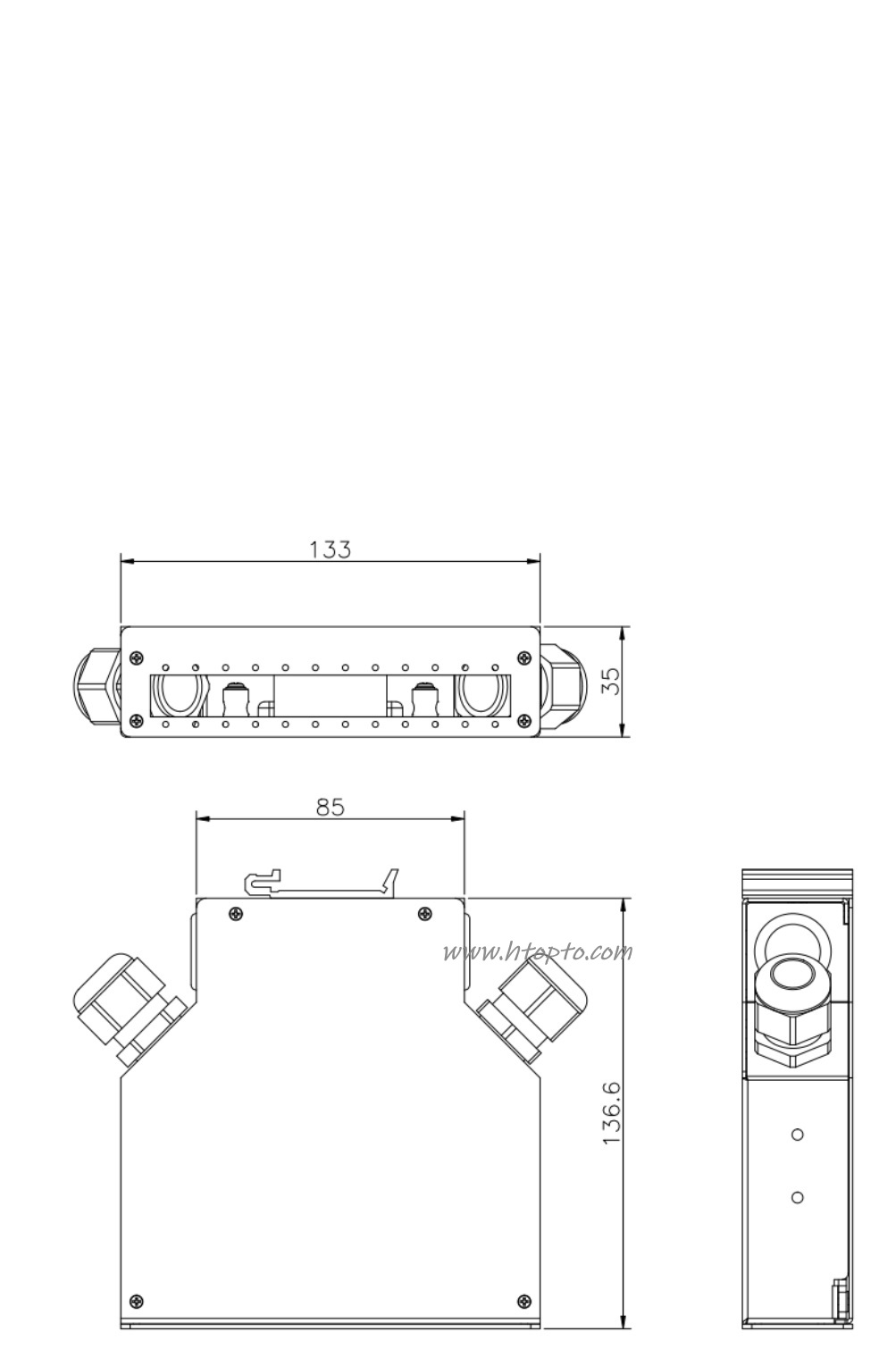

Dimensions:
