The HT100-2U-16DM provides 16 slots for multi-service centralised network management, including managed optical media converters, optical to optical transceivers (OEO amplified repeaters), 1+1 protection cards, CWDM/DWDM MUX/DEMUX boards and much more.
Managed Media Converter Chassis HT100-2U-16DM is a multi-service platform chassis, which provides a reliable solution of high density media converter modules for applications such as telecom operator, enterprise, long haul transmission and factory automation.
Network based on GUI, easy operation with graded management mode (common user, super user and administrator).

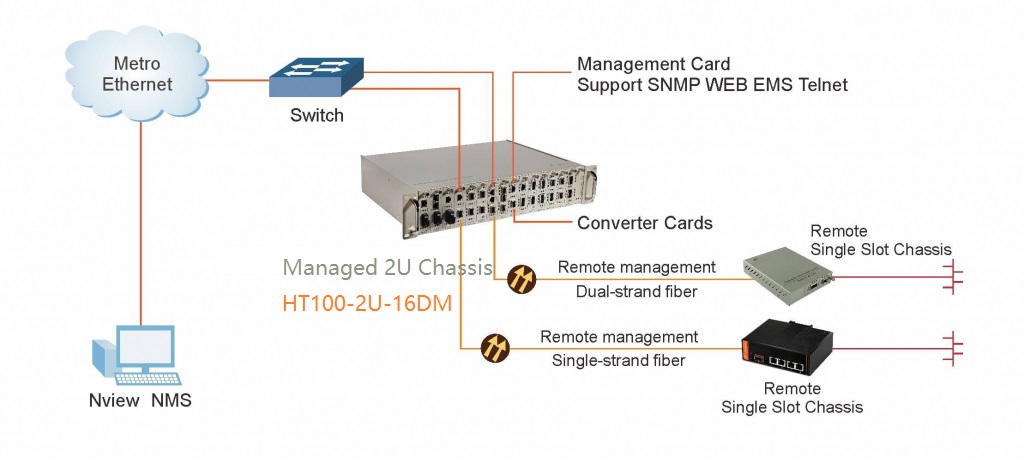

With centralized management and Top tree, several chassis can be managed in the same interface at the same time; with grouping management any converter can be conveniently manipulated among many converters.
Master/slave structure, providing management module (master, slave), maximum 4 chassis which can hold 128 fiber ports and RJ45 ports cascaded can be managed.
Supporting protocols like CONSOLE, WEB, Telnet and SNMP
Console management: Users can set up IP and users’ authority, display/control local and remote media converters with WINDOWS.
WEB management: Users can set up IP and users’ authority, display/control local and remote media converters with WEB on browser, such as IE Standard SNMP protocol: It offers MIB files, convenient to be merged to the third party’s SNMP; users’ can set up 4 TRAP address, choose TRAP irritation factor according to users’ needs, such as Link to Down for TX, and Link to Down for FX.
Special management software: Control center operates backstage with special management software, adopts information and keeps in management PC hard disk as database. It can set up users’ authority and display/control local and remote media converters
Management information
Supporting network device auto-sensing and adding
Complete system information can be set up and displayed, including the name of the chassis, terrain information, related information of IP, constant operating time and the versions of the hardware and soft ware
Real time display of voltage and temperature on the cards of the media converters, temperature of chassis and report fault in time
Supporting SFP/XFP, CWDM SFP/XFP and DWDM SFP/XFP, and it can show the SFP/XFP information and digital diagnosis function
Remote power off alarming, precisely distinguish remote failure
Supporting LFP, quickly locates the failure
Equipment restart, system or module restart by management software, set-up information on each module will be stored spontaneously when power off
Reset to factory set up or dip switch status are optional
Each port at local or remote devices can be set up or tracked, including the connecting status, connecting speed, half/full duplex, port locked and LFP etc.
Supporting Loopback and PRBS, precisely locating the failure, convenient for link test
Supporting management within bandwidth, managing remote equipments conveniently
Powerful historical alarming and operating log information tracking and management function
Supporting FTP online upgrading
Hardware：
|
|
|
Part number
|
HT100-2U-16DM
|
|
Business Interface
|
16 slot(front panel)
|
|
|
2 slot for power supply (rear panel)
|
|
Management interface
|
1 slot for management card (rear panel)
|
|
LED
|
Each group of power has independent LED
|
|
Power supply&mechanical
|
|
Power supply
|
modular power supply, support input 100-240V VAC or -48V VDC
|
|
|
Automatic switchover to standby power in the event of a mains failure
|
|
Dimension
|
425mm(L)×310mm(W)×90mm(H)
|
|
Elevation
|
0-10,000 ft.altitude
|
|
Weight
|
6Kg
|
|
Environmental
|
|
Operation temperature
|
0~ 50°C
|
|
Storage temperature
|
-10~70°C
|
|
Relative humidity
|
5%～95% non-condensing
|
|
Storage humidity
|
5%～95% non-condensing
|
|
Cetificate
|
|
ISO9001:2008，CE , FCC , RoHS，Ministry of Public Security testing, Ministry of Transport testing, telecoms network access licence
EMI：EN 55032:2015
EN 55035:2017
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EMS：IEC 61000-4-2: 2008（Electrostatic testing）
IEC 61000-4-3: 2010（Radiation immunity testing）
IEC 61000-4-4: 2012（Transient pulse interference testing）
IEC 61000-4-5: 2014（Surge testing）
IEC 61000-4-6: 2013（Conductive immunity testing）
IEC 61000-4-8: 2009（Magnetic Field Immunity Test）
IEC 61000-4-11: 2004（Voltage drop, interruption testing）
FCC SDOC：FCC Part 15 Subpart B Class A
Ministry of Public Security testing：Q / ATGT 001-2018（Enterprise standard）
Ministry of Transport testing：YD/T 1099-2013、JT/T 817-2011、GB/T 21671-2008
|
