Welcome to visit H&T Optoelectronic Co.,Ltd. Tel:86-755-86197637

產品分類
Products search
Keyword
Search
Fiber Optic Terminal Box
1U 24-Port(48Core) Sliding Fiber Patch Panel
Sliding rail design,1U structure, suitable for server cabinet installation
Quick assembly and disassembly
The pull tray has three adapter panel slots for quick replacement and wiring.
4~8pcs 21mm cable inlets at the back of the patch panel, dust apron can be cut according to usage
The both mounting ears are adjustable by using different fixing hole, to meet the actual wiring requirements.
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
Easy for management and operation
  • Description
  • Parameter
  • Application
  • Download
  • Related

Description

HT2005RS-1U-48XX Sliding rail drawer design patch panel, with functions of fiber fusion splicing, storage and distributing, mainly used for the termination and distribution of central trunk cables in optical fiber communication systems, which can conveniently realize the connection, distribution and scheduling of the optical fiber line. Suitable for small and medium wiring systems such as FTTZ, FTTB.


Specifications

Fiber Capacity of panel

8/16/24/48

Panel Connector

SC/LC/ST/FC/E2000

Type

Sliding

Dimension

19'' 1U

Material

Cold Rolled Steel

Storage Temperature

-45~+65℃

Thickness

0.8/1.0/1.2 mm

Cable input port

4 or 8

Q’ty of splice tray

2 or 4pcs

Color

RAL7035 or black

Accessories

Cable ties, mounting ear screws, and spiral wrap tube



Ordering information

Model

Fiber Quantity

Height

Dimension(mm)

Weight(Kg)

HT2005RS-8-XX

8

1U

482x 284x44.5

2.8

HT2005RS-16-XX

16

1U

482x 284x44.5

2.8

HT2005RS-24-XX

24

1U

482x 284x44.5

2.8

HT2005RS-48-XX

48

1U

482x 284x44.5

2.8

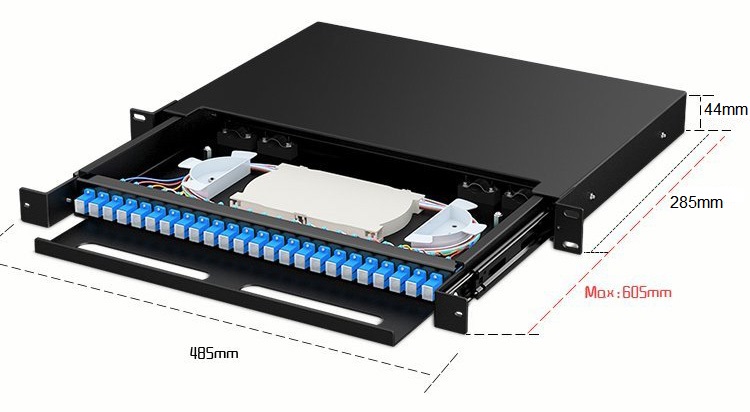

Dimensions

1U抽拉式光纖配線架、光纜終端盒主要應用于光纖通信系統中局端主干光纜的成端和分配，可方便的實現光纖鏈路的連接，分配和調度。常見于數據中心、機房等場景
