Brief Description:
The HT2005V1-DR-12LC DIN-rail type fibre optic terminal box can be used for wiring and terminal connection of various fiber optic systems and is particularly suitable for small network terminal wiring connecting fibre optic cables, plugs or pigtails.
The HT2005V1-DR-12LC DIN-rail fiber optic terminal box can be configured with 2 core, 4 core, 6 core, 8 core, 12 core and with different flange panels such as ST single core panel, LC single fibre panel, LC dual core panel, SC single core panel, SC dual core panel, FC single core panel, E2000 single fibre panel and so on.
The HT2005V1-DR-12LC card-rail and rail type fibre optic terminal box supports OEM customization service!
12Core LC type DIN Rail Fiber Patch Panel Technical specifications:
|
Model
|
HT2005V1-DR-12LC
|
|
Mater
|
Metal
Adapter Plate : Cold Rolled Steel
|
|
Dimension
|
128.8*130*36.4mm
|
|
External Box
|
48.5*47*35mm
|
|
Packing
|
|
|
Inner box
|
16.5*15.5*4.5cm
|
|
External box
|
48.5*47*35cm
|
|
Gross weight
|
|
|
1set
|
0.4KG(around)
|
|
1carton
|
24KG(around)/ 60sets/carton
|
Ordering option
|
Model
|
Adapter
|
Adapter Quantity
|
core
|
|
HT2005V1-DR-12SC
|
SC simplex
|
12
|
12
|
|
HT2005V1-DR-6SC
|
SC simplex
|
6
|
6
|
|
HT2005V1-DR-6SCD
|
SC duplex
|
6
|
12
|
|
HT2005V1-DR-4ST
|
ST simplex
|
4
|
4
|
|
HT2005V1-DR-6ST
|
ST simplex
|
6
|
6
|
|
HT2005V1-DR-12ST
|
ST simplex
|
12
|
12
|
|
HT2005V1-DR-12LC
|
LC Duplex
|
6
|
12
|
|
HT2005V1-DR-6LCQ
|
LC Quad
|
6
|
24
|
|
HT2005-DRV1-12E2000
|
E2000 simplex
|
12
|
12
|

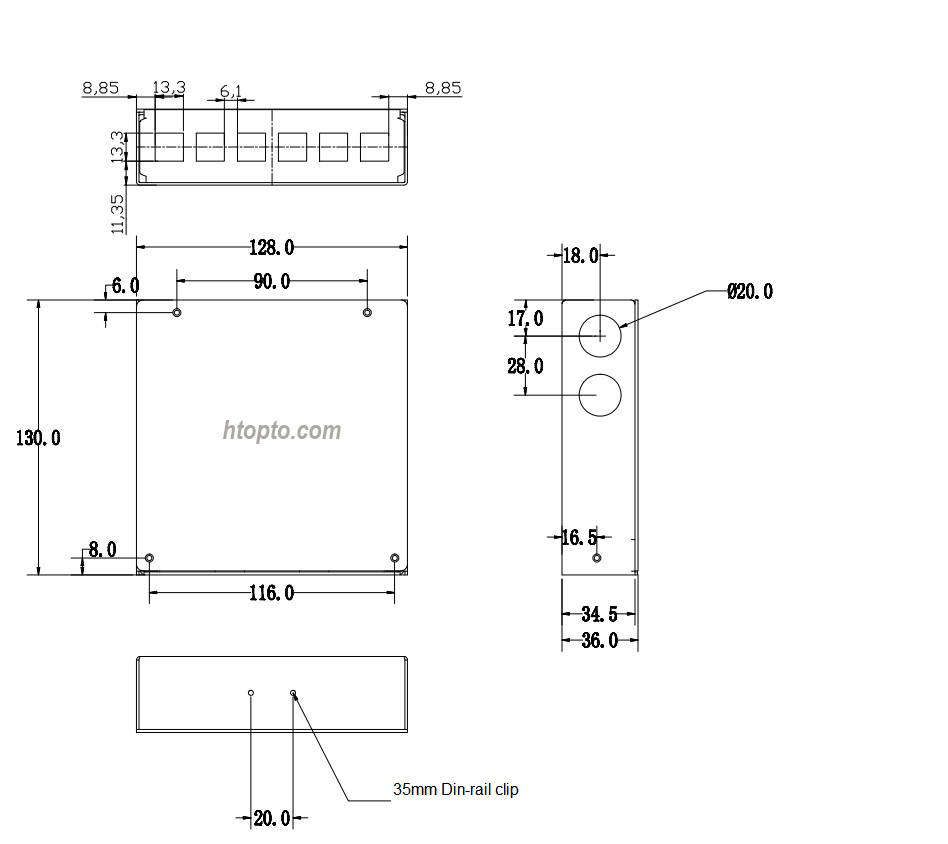

Dimensions
DIN導軌型終端盒主要用于外線光纜光纖與設備尾纖之間的接續與存儲，為光纖與光纖的熔接、光纖與尾纖的熔接以及光連接器的交接提供機械和環境保護。光纖終端盒廣泛應用于網絡系統、數據、圖象傳輸系統，CATV有線電視系列等。DIN導軌型終端盒能夠滿足客戶在機架式終端盒與壁掛式終端盒不能額外開辟空間的情況下使用，其獨特的導軌式安裝方式，廣泛應用于電力通信，軌道交通通信，煤礦監控，醫院學校等場景。
