Product Overview
ODF fiber optic distribution unit box is a kind of high-density, high-capacity design to make fiber optic cable into the end, connection and wiring of high-density products, at the same time with the introduction of fiber optic cable, fixed and protection functions, fiber optic cable terminal and pigtail fusion function, transfer function and patch fiber storage fiber core and pigtail storage and protection functions.
Product features
Full modular design, full frontal operation, integrated fusion and wiring
Large diameter coiling design keeps the bending radius of pigtail and patchcord above 40mm
Integrated drawer type tray, which can be pulled out during operation and put back in afterwards
Suitable for ribbon and non-ribbon cables and a wide range of adapters such as FC, SC, ST and LC
Adapters are mounted at 30° to ensure the bending radius of the patch cord and to avoid laser burns to the human eye.
Easy to operate and well protected
ODF unit box technical specifications
|
Operation wavelength
|
850nm、1310nm、1550nm
|
Insertion loss
|
≤0.3dB
|
|
Return loss
|
PC≥40dB、UPC≥50dB、APC≥60dB
|
Bend radius of splice tray
|
≥40mm
|
|
Fiber connector
|
No mechanical damage after 500 insertions and extractions, no visible scratches on the surface of the pins
|
Plugging durability life
|
＞ 1000 次
|
|
Operation temperature
|
-10℃～+40℃
|
Environment
|
－40℃～+60℃
|
|
Storage temperature
|
-40℃～+85℃
|
Relative humidity
|
≤85%（+30℃）
|
|
Atmospheric pressure
|
70Kpa～106Kpa
|
|
|
Ordering information
|
Product name
|
Model
|
Specification
H*W*D
|
|
12core ODF Unit box
|
HT-ODF-12
|
1U 485*300/250*50
|
|
24core ODF Unit box
|
HT-ODF-24
|
2U 485*300/250*90
|
|
48core ODF Unit box
|
HT-ODF-48
|
3U 485*300/250*140
|
|
72core ODF Unit box
|
HT-ODF-72
|
4U 485*300/250*190
|
|
96core ODF Unit box
|
HT-ODF-96
|
5U 485*300/250*230
|
|
144core ODF Unit box
|
HT-ODF-144
|
7.6U 485*300/250*340
|
適用范圍
1. 適用于光纖到小區、光纖到大樓、遠端模塊局及無線基站的中小配線系統
2. 綜合布線系統中，設備間的水平布線或設備端接、集中點互配端接、光路調接

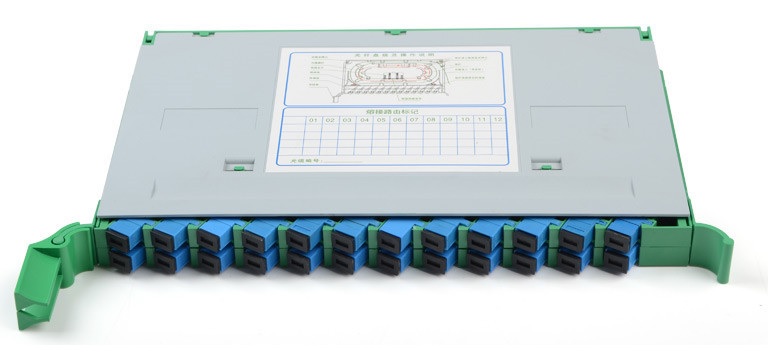

12-core integrated tray，12core optical splice tray
24-core integrated tray，24core optical splice tray
