Product Overview:
Hotcom bundle/fanout fiber optic pigtail, multi-core pigtail contains 12 cores, 12*color pigtails in a fan bundle, easy to use, one end fusion, one end with a connector, this is called bundle pigtail.
The bundle/fanout pigtail is generally used for fusing fibres in multi-core racks, chassis, splitter boxes, splice boxes, etc. In addition, the unique design of NAXINDA bundled pigtails makes the construction of optical fibres easier, reduces the loss during construction, is easy to peel, quick to construct, lightweight and increases the service life of the optical fibre connector.
Features: Easy construction, easy stripping, low loss, multi-colour design with high discrimination.
Technical specifications
|
Fiber Type
|
SM（9/125um）
|
MM（50/125um、62.5/125um）
|
|
Polish
|
UPC
|
APC
|
UPC
|
|
Insertion Loss
（typical）
|
≤0.30dB
|
≤0.30dB
|
|
Return Loss
|
≥50dB
|
≥60dB
|
≥20dB
|
|
3D
|
Radius of Curvature :10-25mm(PC/UPC) ，5-12mm(APC） Apex offset : 0-50um
High fiber : ±100 nm Angle：8±0.2°(APC）
|
|
Repeatability
|
1000 times typical change value ≤ 0.20dB
|
|
Interchangeability
|
≤0.20dB
|
|
Cable Diamete(Branch)
|
0.9mm
|
|
Jacket Material(optional)
|
LSZH、OFNP、OFNR、PVC
|
|
Fiber Moder(optional)
|
G652D, G657A, G657B, OM1, OM2, OM3, OM4
|
|
Operating Temperature
|
-20 ~ +70 ℃
|
|
Storage Temperature
|
-40 ~ +85 ℃
|
Ordering Information
|
Boot
|
Connector
|
Fiber Type
|
Cable number
|
Ferrule
|
Length
|
Color
|
|
0.9mm
2.0mm
3.0mm
|
FC
LC
SC
ST
MU
D4
MTRJ
MPO
DIN
E2000
|
9/125um SM
50/125um MM
62.5/125um MM
OM3
OM4
|
Simplex
Duplex
Multi-fiber
Ribbon
|
PC
APC
UPC
|
1m
2m
3m
4m
5m
......
Customized
|
Aqua
Black
Biege
Blue
Gray
Orange
White
Yellow
|

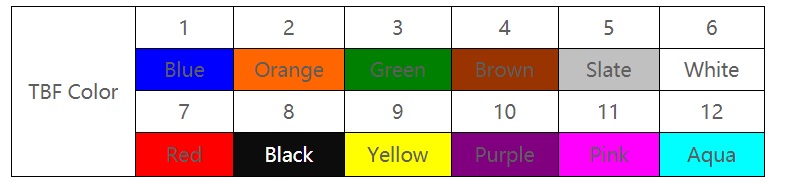

TBF color code sequence
Packaging Information
1. Each fiber optic patch cable with individual serial number, the original batch data can be traced,
2.Each fiber optic patch cable has insertion loss and return loss (singlemode) ,with standard specification test labels
3.Fiber optic patch cords are individually packaged in a small box + carton box
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
