Overview
HOTCOM 1.25Gb/s SFP series optical modules include SFP SX, SFP LX, SFP EX, SFP ZX, SFP BIDI and other series. Provide commercial grade temperature, extended grade temperature and industrial grade temperature for customers to choose. Meet the ultra-long data transmission distance of 550m~160km. Mainly used in Gigabit Ethernet, switch interfaces, router/server interfaces and other fiber-optic links and other environments. The optical module can be compatible with Huawei, Huasan, Cisco, Alcatel-Lucent, Juniper, Ericsson, HP and other equipment.
1.25G SFP Transceiver
Technical specifications
General
Operating Temperature：0~70˚C
Storage Temperature： -40～85˚C
Relative Humidity： 30～80%
Power Supply Voltage：DC 3.3V
Performance
Fiber Type：SMF, Single fiber, 9/125um
Connector：LC
Date Rate：1250 Mbps
Connector Quantity： 1
Distance： 0~20km
Wavelength：1310nm/1550nm
TX Power： -9~-1dBm
RX Sens(Max.)： -21dBm
Ordering information:
訂貨信息：
|
P/N
|
Desp
|
Rate
|
Distance
|
Wavelength
|
Laser
|
Rx
|
Power
|
Temp
|
Datasheet
|
|
HT201-24D083M0.5D-I
|
SFP SX
|
1.25Gb/s
|
550m
|
850nm
|
VCSEL
|
PIN
|
<0.9W
|
-40~+85°C
|
|
|
HT201-24D083M0.5D
|
SFP SX
|
1.25Gb/s
|
550m
|
850nm
|
VCSEL
|
PIN
|
<0.85W
|
0~+70°C
|
|
|
HT201-24D033M0.5D-I
|
SFP SX
|
1.25Gb/s
|
550m
|
1310nm
|
FP
|
PIN
|
<0.9W
|
-40~+85°C
|
|
|
HT201-24D033M0.5D-I
|
SFP SX
|
1.25Gb/s
|
550m
|
1310nm
|
FP
|
PIN
|
<0.85W
|
0~+70°C
|
|
|
HT201-24D033S10D-I
|
SFP LX
|
1.25Gb/s
|
10km
|
1310nm
|
FP
|
PIN
|
<0.9W
|
-40~+85°C
|
|
|
HT201-24D033S10D
|
SFP LX
|
1.25Gb/s
|
10km
|
1310nm
|
FP
|
PIN
|
<0.85W
|
0~+70°C
|
|
|
HT201-24D033S40D-I
|
SFP EX
|
1.25Gb/s
|
40km
|
1310nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24D033S40D
|
SFP EX
|
1.25Gb/s
|
40km
|
1310nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24D053S40D-I
|
SFP EX
|
1.25Gb/s
|
40km
|
1550nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24D053S40D
|
SFP EX
|
1.25Gb/s
|
40km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24D053S80D-I
|
SFP ZX
|
1.25Gb/s
|
80km
|
1550nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24D053S80D
|
SFP ZX
|
1.25Gb/s
|
80km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24D053S100D-I
|
SFP ZX
|
1.25Gb/s
|
100km
|
1550nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24D053S100D
|
SFP ZX
|
1.25Gb/s
|
100km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24D053S120D-I
|
SFP ZX
|
1.25Gb/s
|
120km
|
1550nm
|
DFB
|
APD
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24D053S120D
|
SFP ZX
|
1.25Gb/s
|
120km
|
1550nm
|
DFB
|
APD
|
<0.95W
|
0~+70°C
|
|
|
HT201-24D053S160D-I
|
SFP ZX
|
1.25Gb/s
|
160km
|
1550nm
|
DFB
|
APD
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24D053S160D
|
SFP ZX
|
1.25Gb/s
|
160km
|
1550nm
|
DFB
|
APD
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-35S03D-I
|
BIDI SFP
|
1.25Gb/s
|
3km
|
1310nm
|
FP
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-53S03D-I
|
BIDI SFP
|
1.25Gb/s
|
3km
|
1550nm
|
FP
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-35S03D
|
BIDI SFP
|
1.25Gb/s
|
3km
|
1310nm
|
FP
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-53S03D
|
BIDI SFP
|
1.25Gb/s
|
3km
|
1550nm
|
FP
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-35S10D-I
|
BIDI SFP
|
1.25Gb/s
|
10km
|
1310nm
|
FP
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-53S10D-I
|
BIDI SFP
|
1.25Gb/s
|
10km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-35S03D
|
BIDI SFP
|
1.25Gb/s
|
10km
|
1310nm
|
FP
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-53S03D
|
BIDI SFP
|
1.25Gb/s
|
10km
|
1550nm
|
DFB
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-34S20D-I
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1310nm
|
FP
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-43S20D-I
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1490nm
|
DFB
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-34S20D
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1310nm
|
FP
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-43S20D
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1490nm
|
DFB
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-35S20D-I
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1310nm
|
FP
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-53S20D-I
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-35S20D
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1310nm
|
FP
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-53S20D
|
BIDI SFP
|
1.25Gb/s
|
20km
|
1550nm
|
DFB
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-34S40D-I
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1310nm
|
DFB
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-43S40D-I
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1490nm
|
DFB
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-34S40D
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1310nm
|
DFB
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-43S40D
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1490nm
|
DFB
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-35S40D-I
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1310nm
|
DFB
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-53S40D-I
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
-40~+85°C
|
|
|
HT201-24-35S40D
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1310nm
|
DFB
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-53S40D
|
BIDI SFP
|
1.25Gb/s
|
40km
|
1550nm
|
DFB
|
PIN
|
<0.86W
|
0~+70°C
|
|
|
HT201-24-34S60D-I
|
BIDI SFP
|
1.25Gb/s
|
60km
|
1310nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-43S60D-I
|
BIDI SFP
|
1.25Gb/s
|
60km
|
1490nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-34S60D
|
BIDI SFP
|
1.25Gb/s
|
60km
|
1310nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-43S60D
|
BIDI SFP
|
1.25Gb/s
|
60km
|
1490nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-45S80D-I
|
BIDI SFP
|
1.25Gb/s
|
80km
|
1490nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-54S80D-I
|
BIDI SFP
|
1.25Gb/s
|
80km
|
1550nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-45S80D
|
BIDI SFP
|
1.25Gb/s
|
80km
|
1490nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-54S80D
|
BIDI SFP
|
1.25Gb/s
|
80km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-45S100D-I
|
BIDI SFP
|
1.25Gb/s
|
100km
|
1490nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-54S100D-I
|
BIDI SFP
|
1.25Gb/s
|
100km
|
1550nm
|
DFB
|
PIN
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-45S100D
|
BIDI SFP
|
1.25Gb/s
|
100km
|
1490nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-54S100D
|
BIDI SFP
|
1.25Gb/s
|
100km
|
1550nm
|
DFB
|
PIN
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-45S120D-I
|
BIDI SFP
|
1.25Gb/s
|
120km
|
1490nm
|
DFB
|
APD
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-54S120D-I
|
BIDI SFP
|
1.25Gb/s
|
120km
|
1550nm
|
DFB
|
APD
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-45S120D
|
BIDI SFP
|
1.25Gb/s
|
120km
|
1490nm
|
DFB
|
APD
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-54S120D
|
BIDI SFP
|
1.25Gb/s
|
120km
|
1550nm
|
DFB
|
APD
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-45S160D-I
|
BIDI SFP
|
1.25Gb/s
|
160km
|
1490nm
|
DFB
|
APD
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-54S160D-I
|
BIDI SFP
|
1.25Gb/s
|
160km
|
1550nm
|
DFB
|
APD
|
<1.0W
|
-40~+85°C
|
|
|
HT201-24-45S160D
|
BIDI SFP
|
1.25Gb/s
|
160km
|
1490nm
|
DFB
|
APD
|
<0.95W
|
0~+70°C
|
|
|
HT201-24-54S160D
|
BIDI SFP
|
1.25Gb/s
|
160km
|
1550nm
|
DFB
|
APD
|
<0.95W
|
0~+70°C
|
|

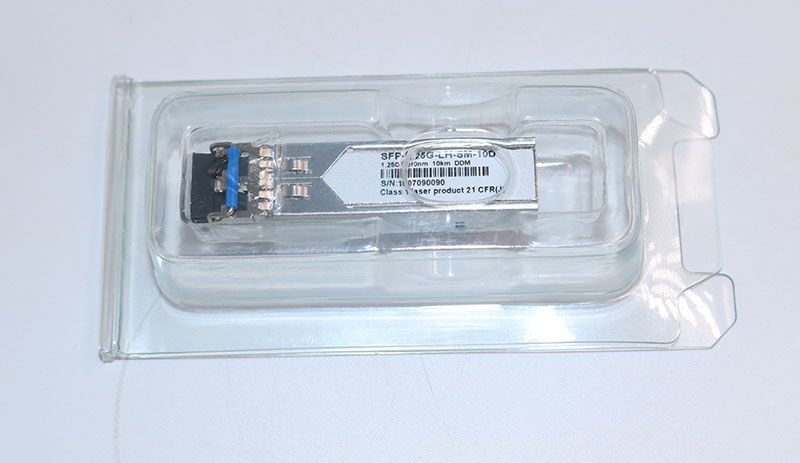

Separate package pic:
•千兆以太網
•光纖通道
•開關切換界面
•交換背板應用
•路由器/服務器接口
•其他光傳輸系統

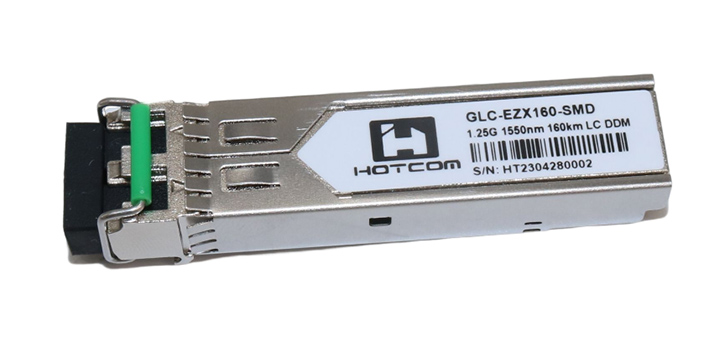

1.25Gbps 1550nm 160KM LC Single Mode Dual Fiber SFP Transceiver Optical Module
1.25Gb/s BiDi SFP 160km Optical Transceiver Data Sheet
Q&A:
What is the difference between LH and LX modules?
What does it infer if a modules says like "Cisco 1000BASE-LX/LH SFP?
Answer:
Generally a module is either made for single mode (More distance) / multimode (short distance). But this module can be used for both Single mode and Multimode.
If used with SM fiber it can go up to 10Km
It used with MM it can go up to 550meters (depend on what kind of MM fiber you have) You need a mode conditioning patch chord too with legacy MM I think OM1 and 2.
Long Haul ( LH ) denotes longer distances while Long Wavelength ( LX ) denotes less energy which is obviously shorter distance. Why does Cisco use both LX and LH for certain SFP modules.
Read this link and don't worry about LX/LH (You will get the distance mentioned above depending on the type of fiber you are using)
http://en.wikipedia.org/wiki/Gigabit_Ethernet
Before it was standardized 1000BASE-LX10 was essentially already in wide spread use by many vendors as a proprietary extension called either 1000BASE-LX/LH or 1000BASE-LH.
