Optical Fiber Cable
Indoor Simplex Fiber Optical Cable
Tight sleeve optical fiber is used for easy stripping
Tight fiber has good flame retardant performance
The aramid reinforced elements make the optical cable have excellent tensile properties
The external protection material has the advantages of corrosion resistance, water resistance, UV protection, flame retardant, environmental protection, etc
  • Description
  • Parameter
  • Application
  • Download
  • Related

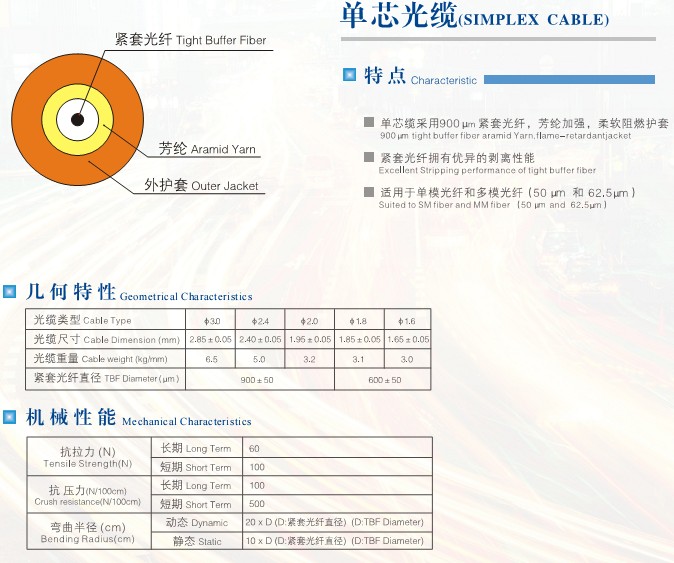

SXC single core optical cable is made of a single Φ 900 μ m or Φ 600 μ m tight sleeved optical fiber as optical transmission medium, covered with a layer of aramid fiber as stress reinforcement unit, and extruded with a layer of PVC or LSZH sheath.
Product standard
It meets the standards of YD / T 1258.2, icea-596, gr-409, IEC 60794-2-10 / 11, etc.; in addition to ordinary PVC products, there are also products certified by UL ofNR and ofnp respectively; LSZH products are made of different materials, which can meet the certification of IEC 60332-1 or IEC 60332-3c or OFNR.
  • Structure

    Type

    OD
    (mm)

    Weight
    (kg/km)

    Tight buffer

    OD
    (μm)

    允許拉伸力

    長期/短期
    (N)

    允許壓扁力

    長期/短期
    (N/100mm)

    彎曲半徑

    動態/靜態
    (mm)

    PVC Jacket

    LSZH Jacket

    SXC-1.6

    1.6±0.2

    2.4

    2.6

    600±50

    40/80

    100/500

    60/30

    SXC-1.9

    1.9±0.2

    3.5

    4.5

    900±50

    60/100

    100/500

    60/30

    SXC-2.8

    2.8±0.2

    6.0

    7.5

    900±50

    60/100

    100/500

    60/30

    光學特性

    光纖類型

    衰減

    滿注入帶寬

    有效模式帶寬

    10G以太網鏈路長度

    最小彎曲半徑

    條件

    1310/1550nm

    850/1300nm

    850/1300nm

    850nm

    850nm

    /

    典型值

    最大值

    典型值

    最大值

    單位

    dB/km

    dB/km

    dB/km

    dB/km

    MHZ.km

    MHZ.km

    m

    mm

    G652D

    0.36/0.22

    0.5/0.4

    ---

    ---

    ---

    ---

    ---

    16

    G657A1

    0.36/0.22

    0.5/0.4

    ---

    ---

    ---

    ---

    ---

    10

    G657A2

    0.36/0.22

    0.5/0.4

    ---

    ---

    ---

    ---

    ---

    7.5

    50/125

    ---

    ---

    3.0/1.0

    3.5/1.5

    ≥500/500

    ---

    ---

    30

    62.5/125

    ---

    ---

    3.0/1.0

    3.5/1.5

    ≥200/500

    ---

    ---

    30

    OM3

    ---

    ---

    3.0/1.0

    3.5/1.5

    ≥1500/500

    ≥2000

    ≤300

    30

    OM4

    ---

    ---

    3.0/1.0

    3.5/1.5

    ≥3500/500

    ≥4700

    ≤550

    30

    BI-OM3

    ---

    ---

    3.0/1.0

    3.5/1.5

    ≥1500/500

    ≥2000

    ≤300

    7.5

    BI-OM4

    ---

    ---

    3.0/1.0

    3.5/1.5

    ≥3500/500

    ≥4700

    ≤550

    7.5

    訂貨信息

  • Length

    Recommended length: 2000m; other lengths can be provided as required by customers.


產品應用

• 光纖活動連接跳線或尾纖

• 室內豎井級和強制通風級布線

• 儀器、通信設備互聯
