產品簡介
HT2005-DR-AL-XX 導軌式光纖終端盒專為室內環境設計，適用于室內與室外光纜之間的連接與分配可導軌安裝和掛墻安裝，具有體積小，重量輕等特點，特別適合要求較小時使用;適用于直徑在20mm以下的光纜。

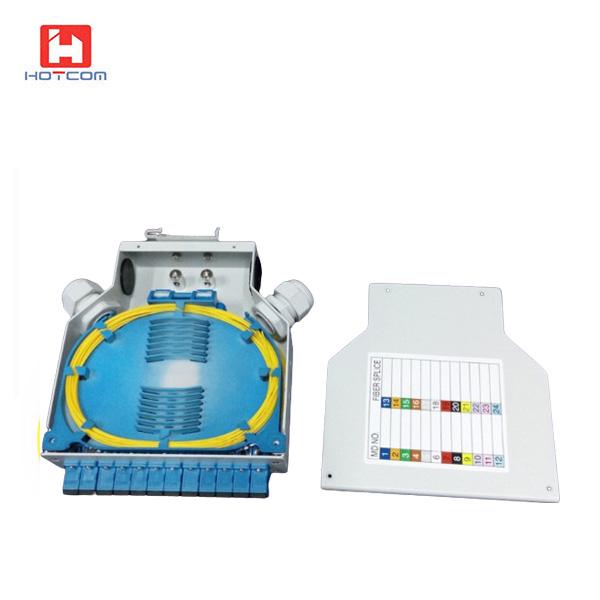

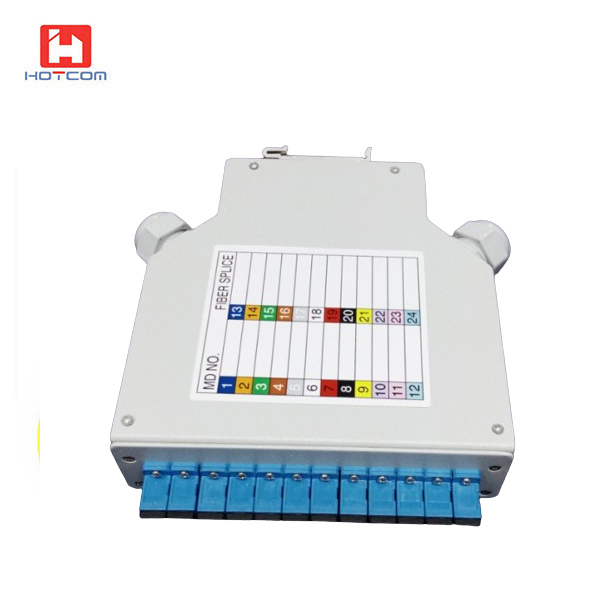

HT2005-DR-AL-XX DIN導軌安裝的光纖終端盒用于光纖連接和分配。它由鋁型材制成，內部帶有塑料接頭托盤。重量輕，適用于12芯光纖盒，可安裝在電氣、通信機柜等環境中的DIN導軌上。它適用于連接 SC/ST/FC 雙工或 LC 四路適配器。安裝在 DIN 導軌和室內應用上。HT2005-DR-AL-XX易于安裝且設計緊湊，允許用戶連接多達 12 根（24根LC）光纖。
HT2005-DR-AL-XX導軌式安裝設計，尤其適合于機房機柜、防水箱等空間安裝，是工業機柜內光纖接續和整理的理想選擇。
Din-rail 12core Fiber optical Terminal Box Specifications：
|
P/N
|
HT2005-DR-AL-XX
|
|
Port number
|
12-port
|
|
Fiber connector
|
LC, SC, FC, ST etc
|
|
Fiber type
|
SM：G652D,G657A1 etc
MM：OM1/OM2/OM3/OM4/OM5
|
|
Optical Characteristics
|
|
|
Connector attenuation (dB)
|
Flange loss ≤ 0.2dB, pigtail loss ≤ 0.3dB
|
|
Return Loss(dB)
|
PC型≥45dB，UPC型≥50dB，APC型≥60dB
|
|
Fiber optic cable, fiber optic storage radius
|
≥45mm
|
|
Mechanical
|
|
|
Material
|
Housing: aluminum alloy
Splice tray: ABS, swing/flip-top design
|
|
Size
|
123*136.6*35mm
|
|
Inner box
|
18*17*4cm
|
|
Outer carton box
|
42*38*37cm
|
|
Gross weight per unit
|
0.65KGS
|
|
Gross weight per box
|
26KGS/40sets
|
|
Installation method
|
Din-rail
|
|
Environmental
|
|
|
Operation temperature
|
-40℃～+85℃
|
|
Relative humidity
|
≤95%（+40℃時）
|
|
Atmospheric pressure
|
70 kPa～106 kPa
|
|
Insulation resistance
|
The insulation resistance between the grounding device and the metal components of the box is not less than 2×104MΩ/500V (DC))
|
|
Withstand voltage(V)
|
The voltage resistance between the grounding device and the metal components of the box is not less than 3000V (DC) / 1min
|
|
Lifespan
|
20-year
|
Ordering information
|
P/N
|
Description
|
|
HT2005-DR-AL-XX SM
|
12-core Din-Rail Fiber Optical Terminal Box, XX=2/4/6/8/12/24 core, SM
|
|
HT2005-DR-AL-XX MM
|
12-core Din-Rail Fiber Optical Terminal Box, XX=2/4/6/8/12/24 core, MM
|
Note: for MM, pls specify the fiber type when place order, for example, OM1 or OM2 or OM3, OM4

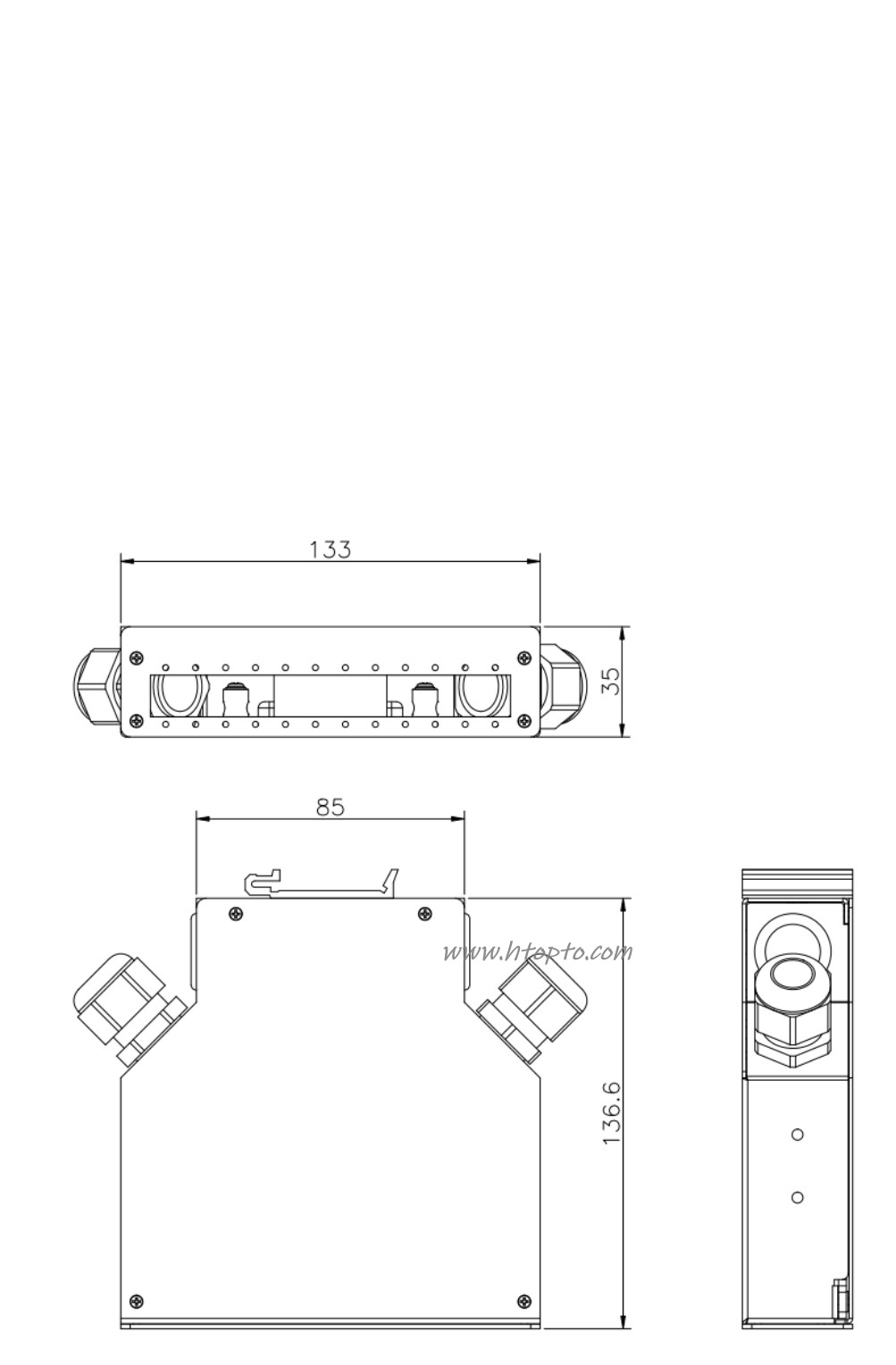

Dimensions:
