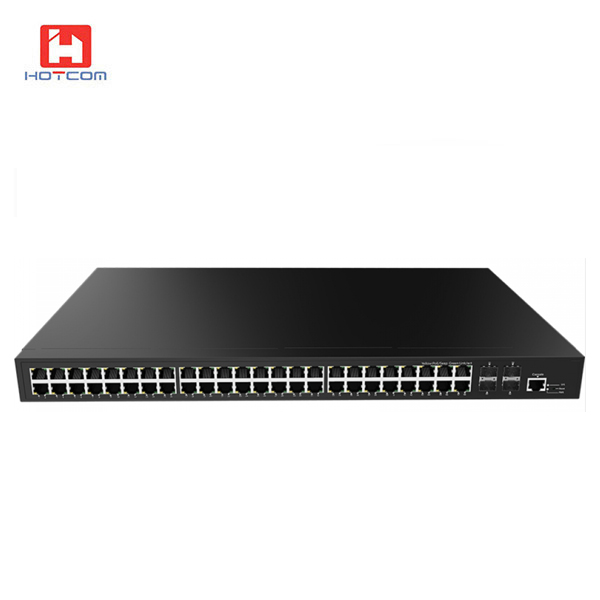

48個(gè)千兆電口+4萬(wàn)兆光口三層管理型交換機(jī)
•48 *10/100/1000BASE-T Gigabit Ethernet RJ45 ports with PoE downlink，4*1G/2.5G/10GSFP+ slots uplink, 1*RJ45 console interface for switch basic management and setup
•Complies with IEEE 802.3at, IEEE802.3af standard. Max output power consumption per port can reach 30W(PoE+)
•Smart and standard PoE chipset to detect the PD equipments automatically, never burn the PD equipments
•Layer 3 routing features: Supports static and dynamic routing, RIP, OSPF, BGP4,ECMP, VRRP
•Port aggregation: Supports GE ports, 2.5GE and 10GE port aggregation, static and dynamic aggregation
•VLAN : Supports access, truck , hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN
•QinQ: Supports port-based, VLAN-based and flow-based QinQ
•Port Mirroring: Many to one port mirroring
•Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
•Multicast: Supports IGMP snooping
•QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS
•Security: Support Dot1x，port authentication，mac authentication，RADIUS service; Support port-security, ip source guard，IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation
•Management : Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management，HTTP1.1，HTTPS; Syslog ; RMON （Remote Monitoring）alarm, event and history record; NTP, temperature monitoring; Ping、Tracert and optical transceiver DDM function; Supports TFTP Client, Telnet Server, SSH Server and IPv6 management; PoE management
•Firmware update, configure backup/restore through Web GUI, FTP and TFTP
•Passed CE certification
