雙模ONU

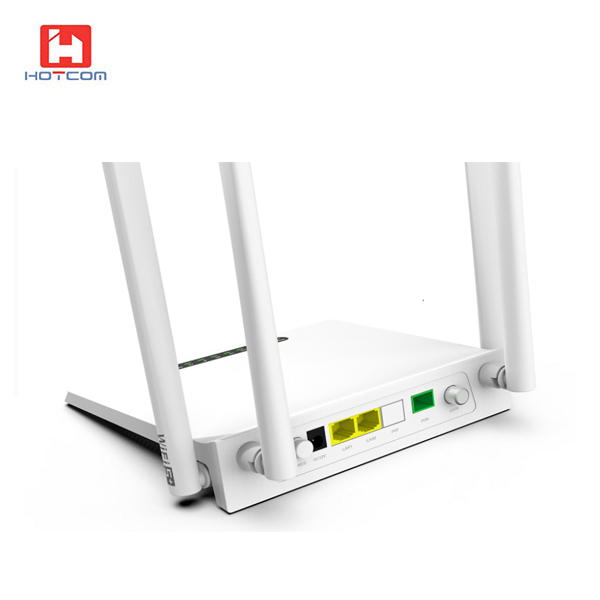

2GE+AC WIFI+CATV XPON ONU

-Supports GPON and EPON auto detection
-Support Rogue ONT detection
-Support Route mode PPPoE/DHCP/Static IP and Bridge mixed mode
-Support NAT, Firewall function.
-Support Internet, IPTV and CATV services automatically bound to ONT ports
-Support Virtual server, DMZ, and DDNS, UPnP
-Support Filtering based on MAC/IP/URL
-Support 802.11 b/g/n, 802.11ac WIFI(2x2 MIMO) function and Multiple SSID
-Support Flow & Storm Control , Loop Detection and Port Forwarding
-Support IPv4/IPv6 dual stack and DS-Lite
-Support IGMP transparent/snooping/proxy
-Support TR069 Remote Configuration and maintenance
-Support CATV remote management from OLT
-Integrated OAM remote configuration and maintenance function
-Compatible with popular OLT (HW, ZTE, FiberHome...)

產品描述
產品參數
應用方案
資料下載
關聯產品

Overview
HT3421X-GWC 2GE+AC Wifi+CATV is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
HT3421X-GWC 2GE+AC Wifi+CATV is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
HT3421X-GWC 2GE+AC Wifi+CATV adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
HT3421X-GWC 2GE+AC+CATV is designed by Realtek chipset 9607C.

技術規格：

Technical Item	Details
PONinterface	1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream:1310nm; Downstream:1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	2 x 10/100/1000Mbps auto adaptive Ethernetinterfaces, Full/Half, RJ45 connector
WIFI Interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support2*2MIMO, 5dBi external antenna, rate up to867Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm
CATV Interface	RF, optical power : +2~-18dBm Optical reflection loss:≥60dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level:≥82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER:≥32dB(-14dBm optical input),＞35(-10dBm)
LED	9 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G、 WARN、Normal(CATV)
Push-Button	3 buttonfor Function of Power on/off, Reset, WPS
Operating condition	Temperature :0℃～+50℃ Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1A
Power Consumption	<6W
Net Weight	<0.3kg

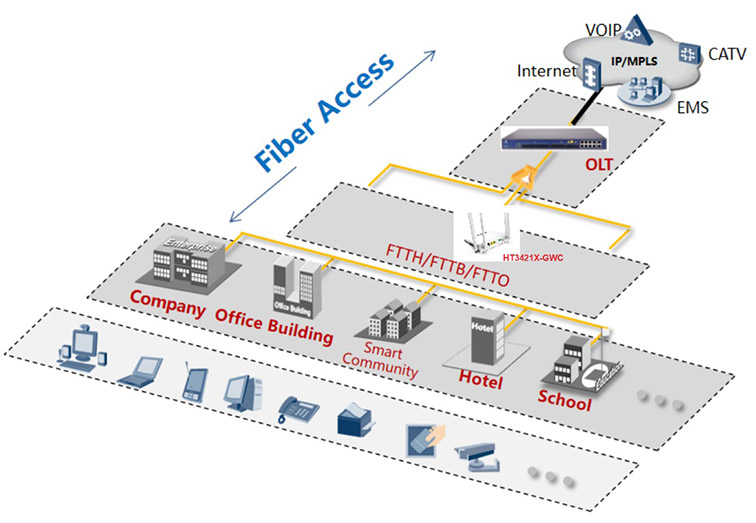

Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)

Typical Service：Broadband Internet access, IPV, CATV etc.
