100G光模塊系列

100G DWDM QSFP28 PAM4 80km DOM

Compatible with the QSFP28 MSA as described in SFF-8665
100Gb/s over 2 wavelengths on a 50 GHz DWDM grid enabling 4Tb/s over a single fiber
PAM4 modulation format enabling 56Gb/s on a single wavelength
80km reach over a duplex, SMF
Integrated, high-gain FEC encode / decode
Advanced ADC/DSP receiver technology
Optical and host loopback functionality
Standard CAUI4 electrical interface
Adaptive equalization (CTLE) on transmit-side electrical input and adjustable output de-emphasis (3 tap FIR filter) to compensate for losses on host
Typical power consumption of 4.5W
2-wire management interface with extended digital diagnostic monitoring and alarm functions

產品描述
產品參數

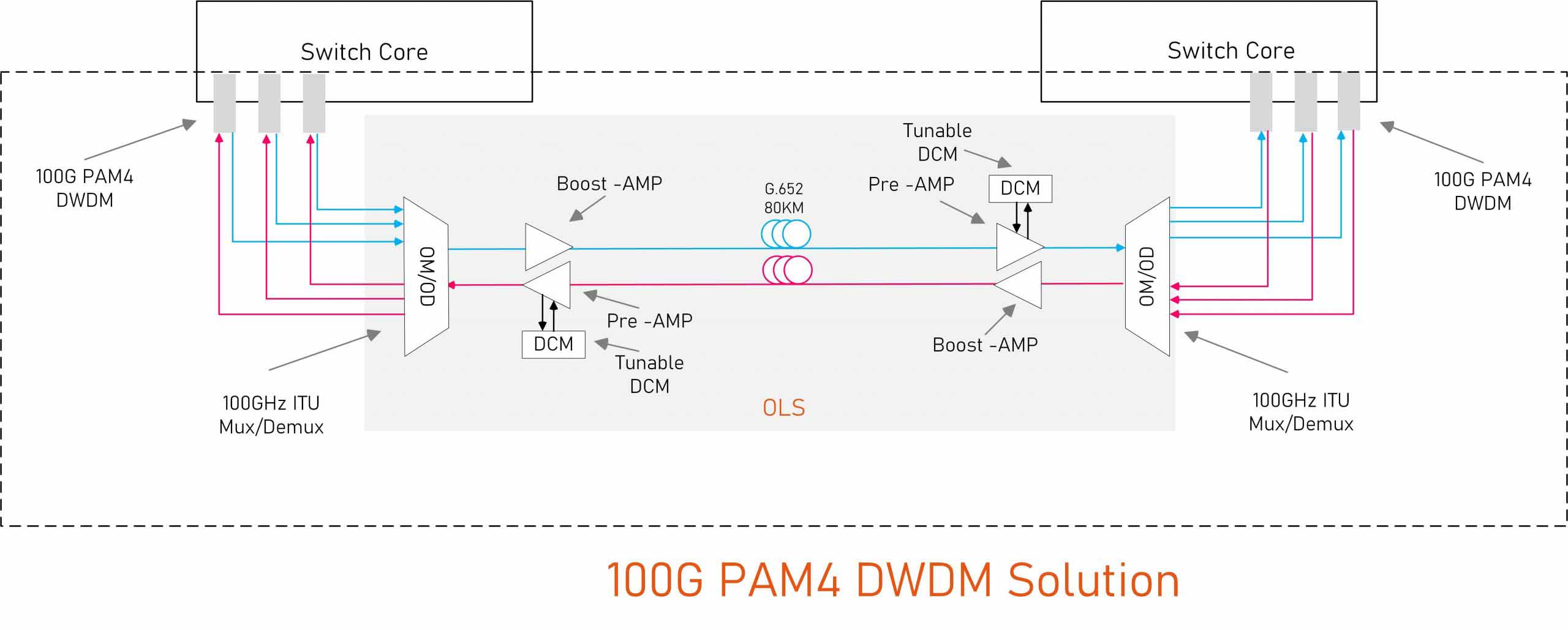

應用方案
資料下載
關聯產品

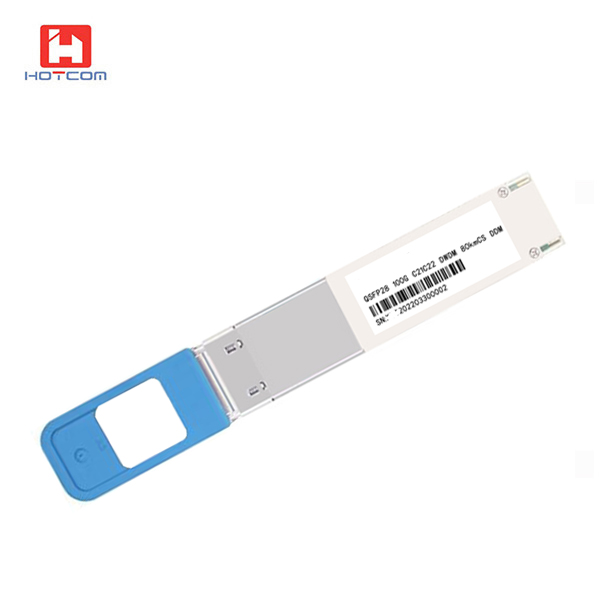

100G QSFP28 DWDM PAM4 80Km LC Transceiver

The HT-100GD-CXX series QSFP28 100G DWDM PAM4 LC QSFP28 DWDM Transceiver module is designed for use in duplex optical data communications. This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.

Transmitter Optical Characteristics

Parameter	Comment		Min	Typ	Max	Unit
Signaling Rate, each lane	Rate=25.78913Gb/s+FEC OH（~9%）*2(PAM4)		Typ -100 ppm	56.25	Typ +100 ppm	Gb/s
Wavelength		Check the wavelength table				nm
Frequency Control	Frequency control loop used to optimize link performance. Mix/max limits indicate control loop range.		λc – 12	N/A	λc + 12	GHz
Center Wavelength Spacing	Wavelength/lane 1-2 spacing		N/A	50	N/A	GHz
Extinction Ratio			N/A	6	N/A	dB
SMSR			30	N/A	N/A	dB
Average Launch Power, per lane			-11	-10	-8	dBm
Dispersion Tolerance	Residual dispersion (RD) after DCM		-100	N/A	+100	ps/nm
Average Launch Power of OFF Transmitter, each lane			N/A	N/A	-30	dBm
Optical Return Loss Tolerance			N/A	N/A	20	dB
Transmitter Reflectance	Defined looking into the transmitter		N/A	N/A	-12	dB

Receiver Optical Characteristics

Parameter	Comment	Min	Typ	Max	Unit
Signaling Rate, each lane	Rate=25.78913Gb/s+FEC OH（~9%）*2(PAM4)	Typ -100 ppm	56.25	Typ +100 ppm	Gb/s
Wavelength	Check the wavelength table				nm
Damage Threshold	Frequency control loop used to optimize link performance. Mix/max limits indicate control loop range.	10	N/A	N/A	dBm
Receiver Power, each lane		-2.0	N/A	6.0	dBm
Receiver Reflectance		N/A	N/A	-20	dB
Required OSNR		31	N/A	N/A	dB
LOSS asserted threshold-OMA		-10	N/A	N/A	dBm
LOSS de-asserted threshold-OMA		N/A	N/A	-3	dBm
LOS Hysteresis		N/A	1.0	N/A	dB

Notes:

1, The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal below this average power level

2, Module receiver LOS characteristics are realized by monitoring the DC current of the high-speed photodiodes. Preliminary LOS threshold limits are shown in the table

Wavelength Selection Table

Channel No.	100GHz Grid	Channel No.	100GHz Grid
D20	192.00	D40	194.00
D21	192.10	D41	194.10
D22	192.20	D42	194.20
D23	192.30	D43	194.30
D24	192.40	D44	194.40
D25	192.50	D45	194.50
D26	192.60	D46	194.60
D27	192.70	D47	194.70
D28	192.80	D48	194.80
D29	192.90	D49	194.90
D30	193.00	D50	195.00
D31	193.10	D51	195.10
D32	193.20	D52	195.20
D33	193.30	D53	195.30
D34	193.40	D54	195.40
D35	193.50	D55	195.50
D36	193.60	D56	195.60
D37	193.70	D57	195.70
D38	193.80	D58	195.80
D39	193.90	D59	195.90

Ordering Information

Part No	Data Rate	Package	Center Wavelength (nm)	Tx	Rx	Distance	Interface	Temp.
HT-100GD-C21	100G	QSFP28	1560.61	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C22	100G	QSFP28	1559.79	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C23	100G	QSFP28	1558.98	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C24	100G	QSFP28	1558.17	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C25	100G	QSFP28	1557.36	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C26	100G	QSFP28	1556.55	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C27	100G	QSFP28	1555.75	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C28	100G	QSFP28	1554.94	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C29	100G	QSFP28	1554.13	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C30	100G	QSFP28	1553.33	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C31	100G	QSFP28	1552.52	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C32	100G	QSFP28	1551.72	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C33	100G	QSFP28	1550.92	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C34	100G	QSFP28	1550.12	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C35	100G	QSFP28	1549.32	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C36	100G	QSFP28	1548.51	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C37	100G	QSFP28	1547.72	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C38	100G	QSFP28	1546.92	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C39	100G	QSFP28	1546.12	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C40	100G	QSFP28	1545.32	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C41	100G	QSFP28	1544.53	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C42	100G	QSFP28	1543.73	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C43	100G	QSFP28	1542.94	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C44	100G	QSFP28	1542.14	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C45	100G	QSFP28	1541.35	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C46	100G	QSFP28	1540.56	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C47	100G	QSFP28	1539.77	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C48	100G	QSFP28	1538.98	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C49	100G	QSFP28	1538.19	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C50	100G	QSFP28	1537.40	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C51	100G	QSFP28	1536.61	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C52	100G	QSFP28	1535.82	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C53	100G	QSFP28	1535.04	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C54	100G	QSFP28	1534.25	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C55	100G	QSFP28	1533.47	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C56	100G	QSFP28	1532.68	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C57	100G	QSFP28	1531.90	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C58	100G	QSFP28	1531.12	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C59	100G	QSFP28	1530.33	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
HT-100GD-C60	100G	QSFP28	1529.55	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C

鴻騰光電高速光模塊解決方案和產品被廣泛應用于數據中心、城域網，無線網絡和接入網的通訊與數據連接。
