全萬兆管理型交換機

8口萬兆SFP+管理型光纖匯聚交換機

*提供8個萬兆SFP+光口實現高帶寬連接和無阻塞的160 Gbps交換能力。
*與現有的Cat6A或更好的布線兼容
*支持超大幀數據包傳輸
*動態LED指示燈，提供簡單的工作狀態提示及故障排除
*支持G.8032(ERPS)、IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3x、IEEE802.3ad、IEEE802.3ab、IEEE802.1p、IEEE802.1x、IEEE802.1Q、IGMP Snooping、IPv4/IPv6優先權。
*支持CLI、SNMP、WEB管理、Console/Telnet命令行管理和syslog，采用自主研發的環網技術，恢復時間<20ms。
*DC12-52V寬范圍電源輸入，反極性保護。
*AC 100~240電源輸入可選
*堅固的金屬外殼，可靈活地安裝在桌面或機架上（與支架結合）。
*0~55℃的工作溫度。
*簡單方便的管理
*帶有風扇冷卻設計
*兩年保修期

產品描述
產品參數
應用方案
資料下載
關聯產品

產品簡介：

HT3208XG/HT3308XG是鴻騰光電自主設計8口全萬兆二層/弱三層管理型光纖匯聚交換機，提供8個10G SFP+端口，支持高帶寬鏈接，可以提高您的網絡速度、容量和可用性，使其成為部署各種互連拓?fù)浣Y(jié)構的任何設備的理想聚合交換。

HT3208XG/HT3308XG匯聚型光纖交換機具有160Gb/s的交換能力，轉發率為95.23Mpps，采用鋼結構和風扇設計，并可以使用附帶的套件進行機架安裝�？墒褂螟欜v管理平臺來輕松配置、管理和監控您的網絡設備。

HT3208XG/HT3308XG萬兆光纖匯聚交換機能夠滿足大型數據中心網絡的組網需求，并具備豐富的智能和安全特性，特別適合于作為數據中心超融合場景的服務器接入設備。

技術規格

Interface
Fiber Port		8*10G SFP+ Slot
Management Port		1*RJ45 Console port
Power connector		3P Phoenix terminal
LED Indicator		PWR (green);System indicator:SYS(green);Network port indicator:yellow(1000 or POE) Green (Link)
Cable type and distance
Twisted pair cable		0-70m (CAT5e, CAT6)
Single-mode fiber		20/40/60/80/100KM
Multimode fiber		300M
Optical fiber interface		SFP slot, LC connector
Network topology & scale
Ring topology		Support
Star topology		Support
Bus topology		Support
Tree topology		Support
Hybrid topology		Support
Electrical characteristics
Input voltage		DC12-52VDC
Power consumption		Full load (Total power) <10W
L2 Features
Standards		IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3an IEEE 802.3bz
Exchange capacity		160G
Packet forwarding rate		95.23Mpps
MAC address table		16K
VLAN support and quantity		Support 4K
Report buffer		12M
Forwarding delay		<10us
Port characteristics		Cross-connect and direct-adaptive
Flow control		Support
Jumbo frame support		Support 10Kbytes
Spanning Tree Protocol		Support STP/RSTP/MSTP
Ring network protocol		Support ERPS
Link aggregation		Support 12 groups
Multicast		Support IGMP Snooping
Port mirroring	Support
Storm suppression	Support
Port traffic statistics	Support
Port flow system	Support
QINQ	Support
Convergence Service
ACL	Support 500 ACLs;Support IP standard ACL;Support MAC extended ACL;Support IP extended ACL;
QoS	Support QoS re-marking and priority mapping;Support SP, WRR queue scheduling;Support entry speed limit and exit speed limit;Support flow-based QoS
Management function
Command line	Support
Management serial port	Support
Telnet	Support
WEB management	Support
SNMP	Support SNMPv1/v2c
User management	Support
System log	Support
File upgrade	Support
Firmware upgrade	Support
SFP module DDM	Support
Environmental conditions
Working temperature		0℃~+55℃
Storage/transport temperature		-40℃~+85℃
Relative humidity		5%~95% does not support condensation (non-condensing)
Cooling method		with fan cooling design
MTBF		100,000 hours
Mechanical structure
Size		210X110X43mm
Installation method		Desktop
Weight		0.8KG

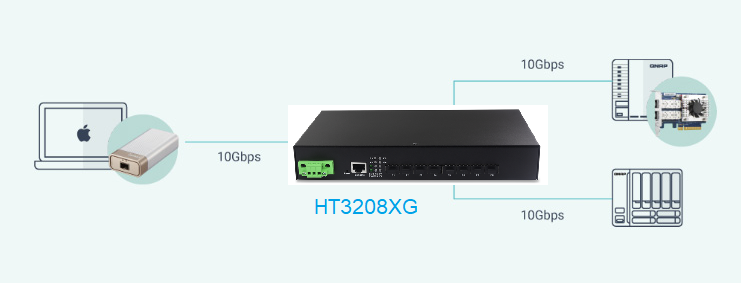

應用拓?fù)鋱D：
