Model
|

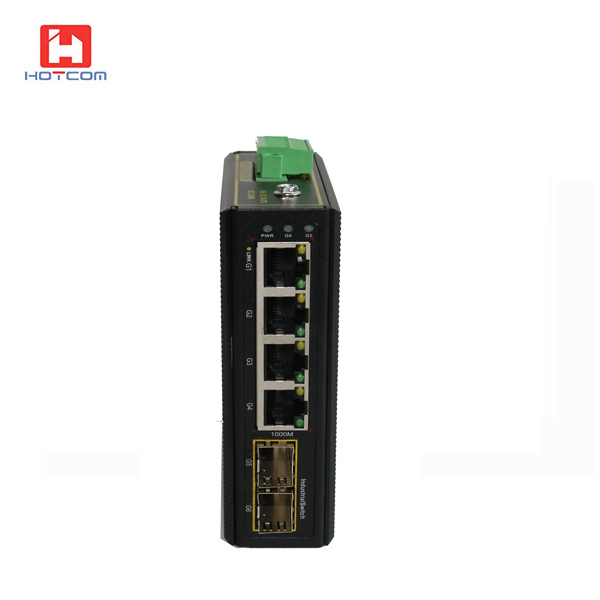

HT304GP-SFPG2-BT
|
|
Interface Characteristics
|
|
|
Fixed Port
|
4*10/100/1000M bt PoE ports (Data/Power)
2*1000M uplink SFP ports (Data) 2 ground of V+, V- redundant DC power interface (5P Phoenix terminal)
|
|
Ethernet Port
|
10/100/1000Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meter)100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter)
|
|
SFP Slot Port
|
Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
|
|
Optical Cable/Distance
|
Multi-mode: 850nm / 0 ~ 500M, Single mode: 1310nm/ 0 ~ 40KM, 1550nm 0 ~ 120KM.
|
|
Layer 2 features
|
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3u 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
12Gbps (Non-blocking)
|
|
Forwarding Rate@64byte
|
8.93Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR (green), network: Link (yellow), PoE: PoE (green)
|
|
PoE & Power
|
|
|
PoE Port
|
Port 1 to 4 @bt POE and backward compatible with IEEE802.3af/at
|
|
Power Supply Pin
|
Default 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
|
|
Max Power Per Port
|
95W; IEEE802.3af/at/bt
|
|
Total PWR / Input Voltage
|
240W / (DC48-57V)
|
|
Power
Consumption
|
Standby<6W, Full Load<240W
|
|
Input Voltage/Interface
|
48-57VDC, 5P industrial phoenix terminal, anti-reverse protection
|
|
Power Supply
|
No, optional 48V/240W industrial power supply
|
|
Physical Parameter
|
|
|
Operation TEMP/Humidity
|
-20~+75°C;5%~90% RH Non-condensing
|
|
Storage TEMP/Humidity
|
-40~+85°C;5%~95% RH Non-condensing
|
|
Dimension (L*W*H)
|
119*100*30mm
|
|
Net /Gross Weight
|
<0.5kg /<0.7kg
|
|
Installation Desktop
|
35mm DIN rail mounting
|
|
Certification & Warranty
|
|
|
Lightning protection/protection level
|
Lightning protection: 6KV 8/20us, Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)
|
|
Mechanical Properties
(free fall)
|
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B
|
|
Warranty
|
5 years, lifelong maintenance
|
