HT201-ONU-STICK-20/HT201-ONU-STICK-20I GPON STICK光模塊, 也稱作 SFP型ONU，可以充分滿足電信級FTTB\ FTTH\ FTTO設備的要求，可以熱插拔到二層以太網交換機SFP插槽中工作，整 機就可作為ONT 甚至MDU，從而使整機設備可直接聯入GPON光網絡，局端OLT只需要像配置普通光貓那樣注冊.
HT201-ONU-STICK-20/HT201-ONU-STICK-20I GPON STICK 光模塊，該通信設備就可以完成從原 P2P 網絡到PON網絡的接入切換。GPON STICK 光模塊支持OMCI 標準，可以提供高達1.25Gbps 的上行鏈路和下行鏈路 2.5Gbps的高速傳輸速率，還可配合該通信設備支持邏輯標識（LOID）認證、Dying Gasp、PON鏈路狀態指示、光模塊異常發光關斷等功能。

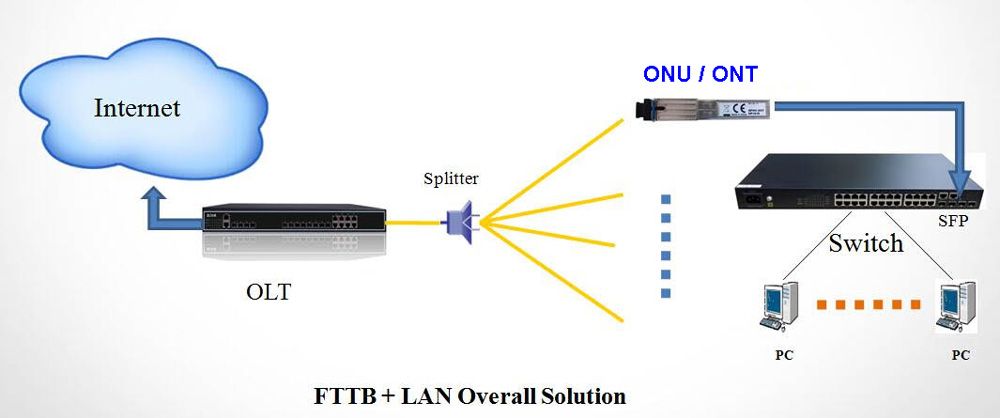

該HT201-ONU-STICK-20/HT201-ONU-STICK-20I產品為工業級SFP形態，集成GPON ONU MAC功能，可插在交換機/IP攝像頭/Smallcell/路由器/DSLAM等設備的SFP上聯口實現視頻回傳或者無線回傳等功能，從而將原有的網絡改造成PON網絡，大大降低網絡改造復雜度和成本。
Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
Complies with ITUT-T G.984.2, G.984.2 Amendment 1
Complies with ITUT G.988 ONU management and control interface (OMCI) specification
Complies with SFF 8472 V9.5
Complies with FCC 47 CFR Part 15, Class B
Complies with FDA 21 CFR 1040.10 and 1040.11
技術規格：
GPON ONT STICK SFP
Gigabit-capable Passive Optical Networks
(GPON)

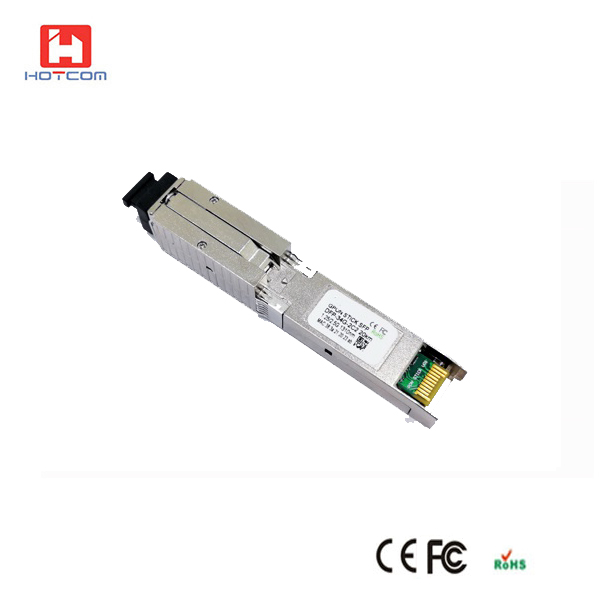

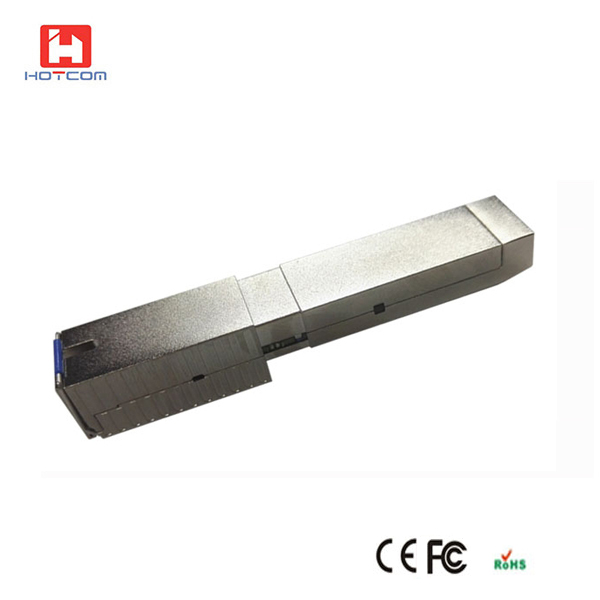

HT201-ONU-STICK-20/HT201-ONU-STICK-20I is an
MSA-compliant SFP that incorporates not just the optics for an ONU, but all of
the electronics need as well. It is a “PON on a Stick” that an entire FTTH ONU
in a slightly oversized SFP. It can be plugged into networking equipment.
Allowing the data interfaces on a switch, router, PBX, etc. to be customized
for different fiber environments and distance requirements
The HT201-ONU-STICK-20/HT201-ONU-STICK-20I is
designed as dual-mode ONU stick, it also supports the EPON ONU OAM. It can be
applied both on EPON system and on the GPON system. It will automatically
establish an EPON link with the EPON OLT or GPON link with the GPON OLT.
