深圳市鴻騰光電有限公司歡迎您!電話:86-755-86197637

100G光模塊系列

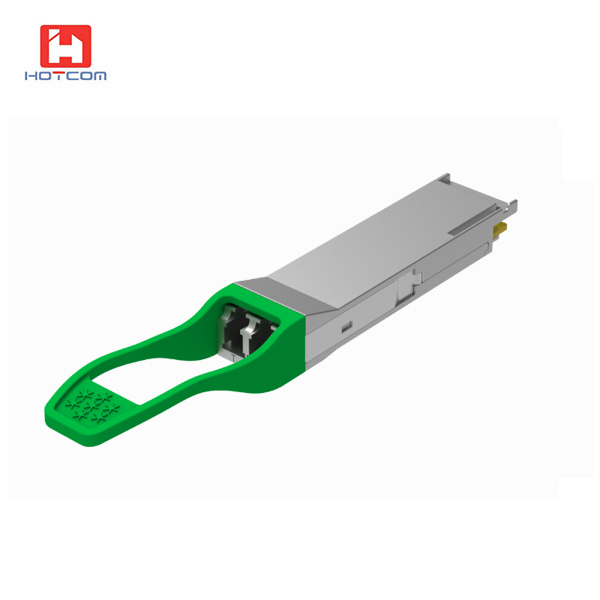

100G QSFP28 CWDM4 (2km)
Hot-pluggable QSFP28 form-factor
4 channels full-duplex transceiver module
4x uncooled CWDM DFB transmitter and PIN ROSA
Internal CDR circuits on both receiver and transmitter channels
Non-airtight optical engine design
Compliant with QSFP28 MSA and CWDM4 MSA
Data rate up to 103.125Gbps
Reach up to 2km over G.652 SMF with KR4 FEC
Power consumption < 3.5W
Duplex LC receptacles
Operating case temperature range from 0°C to 70°C, -40°C to +85°C
3.3V power supply voltage
RoHS compliant (lead free)
  • 產品描述
  • 產品參數
  • 應用方案
  • 資料下載
  • 關聯產品

The Hotcom 100G QSFP28 CWDM4 2km optical transceiver HT-100G-QSFP28-CWDM4-02 is designed for Data Center 100G CWDM4 Ethernet links reach up to 2km with FEC over Single-Mode Fiber (SMF).

The HT-100G-CWDM4QSFP28--02 module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 CWDM channels are 1271nm, 1291nm, 1311nm and 1331nm as members of the CWDM wavelength grid defined in CWDM4 MSA. The high-performance uncooled CWDM DFB transmitters and high-sensitivity PIN receivers provide superior performance for 100-Gigabit Ethernet applications up to 2km links.

Product Number

Bit Rate

100GBASE

Reach

Wavelength

Package

Temperature
Range

Data Sheet

HT-100G-QSFP28-CWDM4-02

103.125Gb/s

CWDM4

2km

CWDM4

QSFP+ with DMI

0 ~ 70°C

HT-100G-QSFP28-CWDM4-02-I

103.125Gb/s

CWDM4

2km

CWDM4

QSFP+ with DMI

-40°C to +85°C

***CWDM 4-Wavelength DFB LDs: 1271, 1291, 1311 and 1331 nm.

100G CWDM4 Ethernet Data Center Networks

QSFP-100G-CLR4100G QSFP28 CWDM4光模塊同樣為2KM,究竟有什么區別?

隨著數據中心流量的不斷激增,100G光模塊的市場需求也在進一步增加,常見的100G光模塊有SR4、LR4、ER4等,不過在實際的應用中,由于光纖鏈路長度有長有短, 單靠幾種類型的光模塊不能滿足最具性價比的數據中心光網絡傳輸解決方案。
因此,在中長距離中,CWDM4 MSA組織和100G CLR4聯盟也分別制定了傳輸距離為2 km的100G QSFP28 CWDM4標準和100G QSFP28 CLR4標準。那么同樣傳輸距離都為2KM的100G QSFP28 CLR4和CWDM4光模塊究竟有什么相同和不同的地方呢?下面將為大家揭曉答案。

相同之處:
1、兩者的接口類型都為雙工LC;
2、兩者都采用CWDM波分復用技術,工作波長都為1270、1290、1310、1330nm;
3、兩者都為單模光模塊,傳輸距離都為2KM。


不同之處:
100G QSFP28 CWDM4光模塊必須用于具有前向糾錯(FEC)功能的光纖鏈路。
100G QSFP28 CLR4光模塊既能用于具有前向糾錯(FEC)功能的光纖鏈路,也能用于不具有前向糾錯(FEC)功能的光纖鏈路。
而在不具有前向糾錯(FEC)功能的光纖鏈路中,100G QSFP28 CLR4光模塊也能保持低延遲和低功耗的性能。100G QSFP28 CLR4光模塊的這個特點使得其在高性能計算、高頻交易等領域更受青睞。
鴻騰光電100G QSFP28 CWDM4光模塊和100G QSFP28 CLR4光模塊是數據中心2公里傳輸應用中比較節省成本的解決方案,其中,100G QSFP28 CWDM4光模塊的在數據中心的應用更為常見。
