Model
|

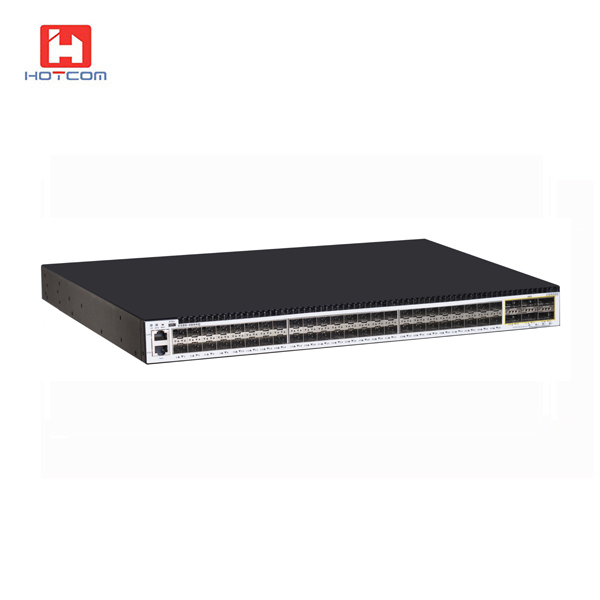

HT3580-48X6Q
|
|
10G SFP+端口
|
48
|
|
40G QSFP+端口
|
6
|
|
交換容量
|
1.44
Tbps
|
|
包轉發率
|
1071.4Mpps
|
|
轉發技術
|
存儲轉發
|
|
Latency
|
Min:600ns
Max:667ns
|
|
CPU
|
PowerPC P1010
|
|
系統內存
|
2 GB
|
|
Flash
|
2 GB
|
|
包緩存
|
9 MB
|
|
管理口
|
1
|
|
串口
|
1 (RJ-45)
|
|
USB
|
1
|
|
熱插拔電源
|
2
(1+1 備份)
|
|
熱插拔風扇
|
4
(3+1 備份)
|
|
風向
|
前后風向
|
|
環境要求
|
僅適用于海拔2000m以下地區安全使用
|
|
尺寸(WxHxD)
|
44.0
x 4.36 x 47.0 cm (17.5 x 1.73 x 18.5 in.)
|
|
典型功耗/最大功耗
|
120W/
150W
|
|
重量(帶一個電源模塊)
|
22lbs
(8.3kg)
|
|
MTBF(小時)
|
97,210.07
|
|
最大 VLANs
|
4094
|
|
最大 MAC數
|
128K
|
|
Jumbo Frames
|
9600 Bytes
|
|
最大路由條目
|
32K
|
|
最大ARP條目
|
20K
|
|
最大組播組
|
8K
|
|
環境特性
|
|
|
操作溫度
|
· 0 to 45 oC (長期) -5 to 55 oC (短期)
|
|
存儲溫度
|
· -40 to 70 oC
|
|
相對濕度
|
· 0 to 95% (非冷凝)
|
|
安規規范
|
|
|
安全論證
|
· UL to UL 60950, Third Edition
· CE Marking
· NEBS level 3
|
|
電磁兼容性認證
|
· FCC Part 15 Class A
· CE
|
|
保修
|
· 有限終身保修
|
|
支持的光模塊及線纜
|
|
10GbE光模塊
|
|
QSFP-40G-SR4
|
40GBASE-SR4 QSFP+ transceiver, up to 100m over parallel OM3 or 150m
over OM4 multi-mode fiber
|
|
QSFP-40G-XSR4
|
40GBASE-XSR4 QSFP+ transceiver, up to 300m over parallel OM3 or 450m
over OM4 multi-mode fiber
|
|
QSFP-40G-LRL4
|
40GBASE-LR4 QSFP+ transceiver, up to 1km over single-mode fiber
|
|
QSFP-40G-LR4
|
40GBASE-LR4 QSFP+ transceiver, up to 10km over single-mode fiber
|
|
4 x 10GbE QSFP+ to 4 x SFP+銅纜
|
|
CAB-Q-S-3M
|
4 x 10GbE QSFP+ to 4 x SFP+ twinax copper cable, 3M
|
|
CAB-Q-S-5M
|
4 x 10GbE QSFP+ to 4 x SFP+ twinax copper cable, 5M
|
|
40GbE QSFP+ to QSFP+銅纜
|
|
CAB-Q-Q-3M
|
40GbE QSFP+ to QSFP+ twinax copper cable, 3M
|
|
CAB-Q-Q-5M
|
40GbE QSFP+ to QSFP+ twinax copper cable, 5M
|
|
40GbE QSFP+ to QSFP+ AOC光纜
|
|
AOC-Q-Q-40G-3M
|
QSFP+ to QSFP+ 40GbE Active Optical Cable 3 meter
|
